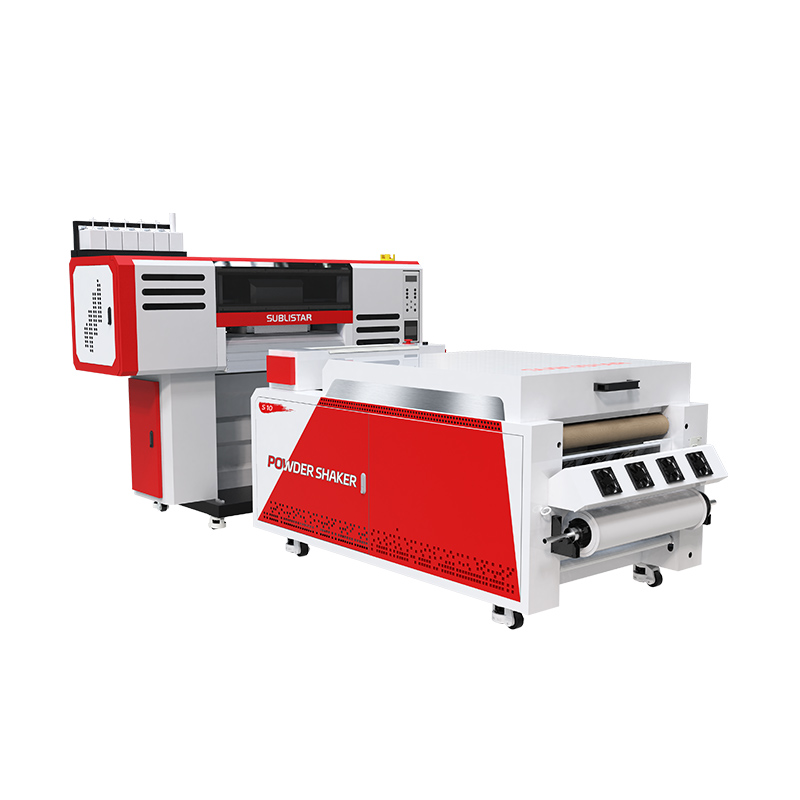

DTF-6004 STAR IV 4-Head Industrial DTF Printer & Shaker with Dual Color Configuration (2C+2W / 13-Color)
The SUBLISTAR DTF-6004 STAR IV is a versatile industrial 4-head DTF printing system designed for both high-volume production and ultra-high-quality printing. Supporting 2 Colour + 2 White configuration for maximum productivity or an advanced 13-colour configuration including CMYK, Light Cyan, Light Magenta, Light Black, Light Light Black, Orange, Red, Green, Blue, and White, it enables manufacturers to switch between commercial efficiency and premium image reproduction without changing equipment.
Technical Highlights:
- Print Heads: 4 x Epson I3200 print heads
- Print Size: 24″(600mm) Print Width for options
- Print Resolution: upto 2400dpi
- Colour Configuration: 2C+2W/CMYK, LC , LM , LK , LLK , O, R, G, B, W
Top Features:
- High-Precision Printheads: dual-color and dual-white solution or 12-color high-precision printing.
- Seamless Automatic Printing: true reproduction of the design and natural transition of colors.
- Stable Printing: High quality of machine components ensures output quality.
- Save Time And Effort: Realize batch-level printing, one key oven lifting.
- Fresh Environment: Built-in purifier to avoid dust overflow.
Warranty: 24 months (Ink system, printheads and ink capping are not covered)
International Shipping: DHL, FedEx, By Air, By Sea
Product Highlight
One Printer. Two Configurations. Unlimited Possibilities.

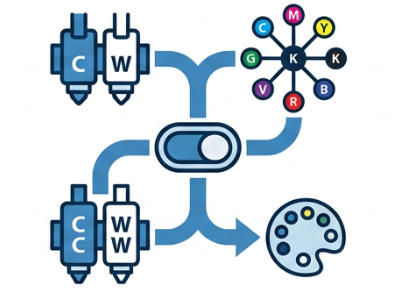

Dual Printing Modes for Different Business Needs
Choose between 2 Colour + 2 White configuration for fast commercial apparel production or 13-colour precision printing for photographic images, premium fashion graphics, artwork reproduction, and luxury textile applications.

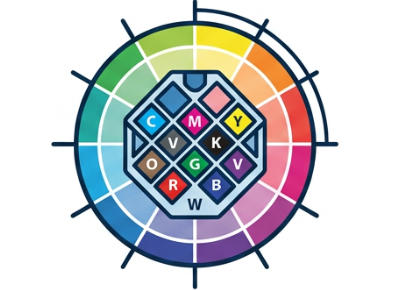

13-Colour Extended Gamut Printing
The optional 13-colour ink configuration dramatically expands the printable colour gamut, producing smoother gradients, richer shadows, more natural skin tones, and highly accurate colour reproduction beyond standard CMYK printing.
Wide Colour Gamut for Premium Graphics
Compared with conventional DTF printers, the 13-colour configuration reproduces more vibrant colors. Perfect for fashion brands, luxury apparel, photographic printing, and premium transfer production.
Sublistar 12-Color DTF T-Shirt Printing VS Normal Printing
Previously, some people asked whether the DTF printer could print nine colors, Sublistar responded positively to the customer’s demand for multi-color printing and successfully developed a 12-color printer. It meets the printing needs of customers with a wider color gamut and realizes printing-level high-quality output.
As you can see from the picture above, the latest 12-color DTF printer can achieve high-definition output. Compared with ordinary printing, the color transition is more natural, the picture quality is more delicate, and the one-piece molding reduces printing defects.
Epson I3200-A1 Print Head
The 12-color DTF t-shirt printer & shaker is equipped with 4 Epson I3200-A1 printheads, outputting unparalleled high-precision picture quality, making up for the unnatural color transition on the screen caused by fewer colors before.
| Model | I3200-A1 |
| Ink Types | Water based ink |
| Size(width x depth x height)(mm) | 69.1×59.4×35.6 |
| Weight(g) | 82 |
| Nozzle Numbers | 3200 |
| Length Between Nozzles(inch) | 1/300(in one row) |
| Nozzle Row | 8 row |
| Max color/head | 4 colors |
| Resolution | 300 npi/1 row 600 npi/2 rows |
| Effective Printing Width(mm) | 33.8 |
| Jet Freqency(kHz) | 43.2 (single dot), 21.6 (multi dot) |
| Ink Drops(pl) | 3.8-6-12(9.4) |
| Ink Viscosity(mPa.s) | 3~4 |
Product Specifications - DTF-6004 STAR IV Dual-Configuration Industrial DTF Printing System
| DTF-6004 STAR IV Dual-Configuration Industrial DTF Printing System | ||
| Model | DTF-6004 STAR IV | |
| Brand | SUBLISTAR | |
| Printing Technology | Direct-to-Film (DTF) Printing | |
| Printheads | 4 × Epson I3200-A1 | |
| Colour Configuration | 2C+2W | CMYK + LC + LM + LK + LLK + Orange + Red + Green + Blue + White |
| Print Width | 600 mm | |
| Print Resolution/Speed | 4pass: 22m²/h | 4pass: 12m²/h |
| 6pass: 16m²/h | 6pass: 8m²/h | |
| 8pass: 12m²/h | 8pass: 6m²/h | |
| Ink Type | Water-Based DTF Pigment Ink | |
| RIP Software | FlexiPrint, Digital Factory, ONYX, PrintFactory | |
| Voltage | AC 110 V / 220 V, Single Phase, 50/60 Hz | |
| Machine Dimensions | 1766 × 750 × 1513 mm | |
| Packing Dimensions | 1880 × 1060 × 740 mm | |
| Gross Weight | 210 kg | |
| Automatic Powder Shaker & Dryer | ||
| Model | DSP-750II (S10i) | |
| Brand | SUBLISTAR | |
| Operation Mode | PLC Control with Touch Screen Interface | |
| Max Working Width | 750 mm | |
| Oven Length | 2160 mm | |
| Oven Temperature Range | Ambient – 400 °C (Adjustable) | |
| Heating System | Infrared heating + hot air circulation | |
| Powder System | Sensor-controlled automatic powder application system | |
| Take-up System | Pneumatic air shaft take-up system | |
| Cooling System | Forced air cooling (fan cooling) | |
| Applicable Materials | DTF Film | |
| Power Supply | AC 220 V, Single Phase, 50/60 Hz | |
| Rated Power | 7 kw | |
| Shaker Dimensions (L × W × H) | 3260*1270*920 mm | |
| Packing Dimensions (L × W × H) | 3170*1330*1140 mm | |
| Packing Weight | 380kg | |

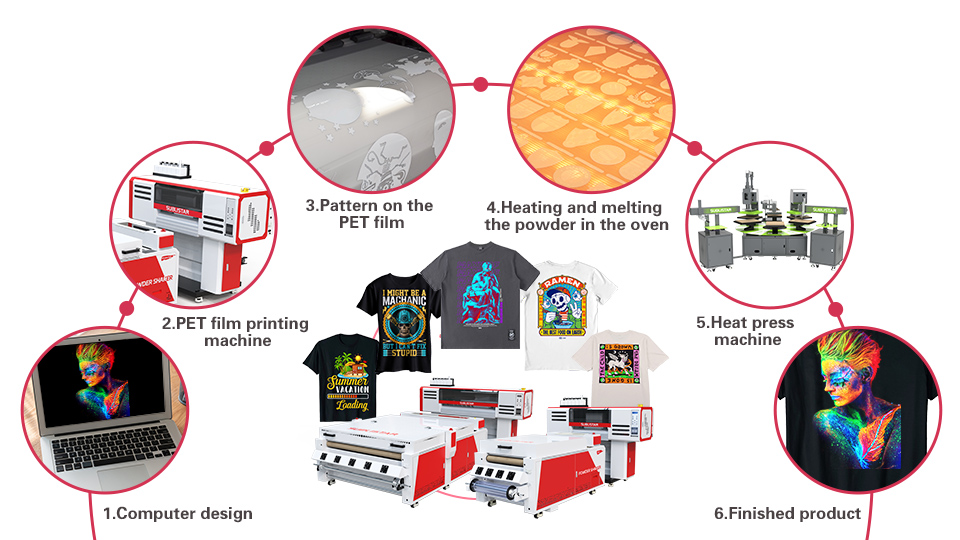

T Shirt (DTF) Printing Process
Designing Beautiful Patterns
Choose the graphic software that best suits your needs to create a personalized design.
Start Computer Printing
Type color first, then white, you can use SUBLISTAR milky white powder with it to reduce the amount of white ink used.
Sprinkle + Shake + Dry
Sublistar DTF powder shaker S10 plus dual can realize automatic powder spreading, powder shaking, fast curing and drying.
Cutting+Heat Pressing+Garmenting
The printed PET is cut and then transferred to the garment by DTF Intelligent Automated Heat Press Carousel, after peeling the film, it is a piece of artwork.
Ultra-wide Color Gamut For All Your Printing Needs - DTF-6004 STAR IV DTF Printer
Is the DTF Star IV 12-Color High Precision DTF T-Shirt printer different from other printing methods? The steps are the same as normal DTF printing, but it has more advantages in color and detailing.
Maybe in the comparison chart above, you think it’s just a photo, not clear and vivid enough. The video can well show the difference between 4-color and 12-color printing. The output quality is fine and the colors are vivid.
DTF Applications
DTF Star IV 12-Color High Precision DTF T-Shirt printer is designed for high-quality printing. Its 600mm and 1200mm widths can efficiently meet customers’ mass production needs. 12-color multi-color printing can be applied to colorful garment fabrics. For example: rainbow family dresses, colorful oil painting pillows, denim vests, oil painting shirts, printed coasters, cute squirrel hats, and so on. Multi-color printing brings beautiful visual enjoyment.
Exclusive Offer: BUY 1 GET More !
Buy SUBLISTAR DTF printer online, get premium quality DTF printing starter kit supplies for free.
DTF Starter Kit Includes:
- Film: 0.6m*100m/0.3m*100m roll size
- DTF Powder: 2 kg (4.4 lbs)
- DTF Ink: 1000ml*5 (c,m,y,k+w)
- Rip software: Flexi Print/Maintop
- Sublistar DTF environment settings
- Sublistar DTF instructional video
FAQ
What Is 13-Colour DTF Printing?
A 13-colour DTF printing system expands the traditional CMYK colour space by adding Light Cyan, Light Magenta, Light Black, Light Light Black, Orange, Red, Green, Blue, and White inks. The extended colour gamut enables smoother gradients, higher colour accuracy, and more faithful reproduction of photographs, artwork, and premium textile graphics.
What is the difference between 2C+2W and 13-colour DTF printing?
The 2 Colour + 2 White (2C+2W) configuration is optimized for high-speed commercial production, making it ideal for large-volume T-shirt printing, workwear, sportswear, and Print-on-Demand (POD) businesses. It delivers excellent productivity while maintaining vibrant colours and reliable white ink coverage.
The 13-colour configuration expands the standard colour gamut by adding Light Cyan, Light Magenta, Light Black, Light Light Black, Orange, Red, Green, Blue, and White inks. This enables smoother gradients, richer colours, more accurate skin tones, and superior photographic image reproduction, making it the preferred choice for premium apparel decoration and high-end textile printing.
Why choose a 13-colour DTF printer?
What advantages do Orange, Green, Blue, and Red inks provide?
- More vivid reds and oranges
- Richer greens and blues
- Improved colour saturation
- Smoother colour gradients
- More accurate brand colour reproduction
- Enhanced photographic realism
- Better matching of complex graphic design
Which industries benefit from extended-gamut DTF printing?
- Fashion and premium apparel brands
- Sportswear and activewear manufacturers
- Luxury garment decoration
- Print-on-Demand (POD) businesses
- Photography and portrait printing
- Fine art and artwork reproduction
- Corporate branding and promotional apparel
- High-end custom T-shirt printing
Can a standard 2C+2W configuration be upgraded to 13-colour printing?
Yes. The SUBLISTAR DTF-6004 STAR IV is designed with a flexible colour configuration that allows customers to upgrade from the standard 2 Colour + 2 White (2C+2W) setup to an extended 13-colour printing configuration.
The upgrade involves replacing the ink set, reconfiguring the printhead channel layout, and installing the dedicated SUBLISTAR 13-colour ICC colour profile. Once configured, the printer can achieve a significantly wider colour gamut, smoother tonal transitions, and highly accurate colour reproduction for premium textile applications.
This upgrade allows businesses to expand from high-speed commercial production to high-end colour-critical printing without purchasing a new printer, helping protect long-term equipment investment.
