Honeycomb Laser Cutting Engraving Machine
The SUBLISTAR CNC Honeycomb Cutting Machine adopts oscillating knife cutting technology, designed for processing paper honeycomb, aramid honeycomb and aluminum honeycomb panels. It achieves high-precision contour cutting without cutting dies, suitable for sample development and mass production in packaging, aerospace and new energy industries.
Technical Highlights:
- Cutting System: Advanced oscillating knife unit delivers neat, burr-free cutting edges
- Control System: High-stability CNC motion control ensures consistent cutting accuracy
- Worktable: Vacuum adsorption platform firmly secures lightweight honeycomb materials
- Material Compatibility: Supports paper, aramid and aluminum honeycomb panels
- Production Advantage: Die-free cutting shortens lead time and reduces production costs
Key Features:
- Processing Flexibility: Die-free cutting for custom shapes and frequent design changes
- Material Fixation: Powerful vacuum suction avoids material displacement during cutting
- Software Operation: Intuitive system for graphic import and cutting path editing
- Cost Efficiency: Minimal material waste to boost raw material utilization
- Machine Structure: Robust frame enables stable long-hour continuous operation
- Production Scale: Fits prototype sampling, small batches and mass manufacturing
Product Highlights
Honeycomb-Bed CO₂ Laser Cutting & Engraving Machine
Designed for paper honeycomb, aramid honeycomb, aluminum honeycomb and various lightweight composite panel materials, the Honeycomb Cutting Machine adopts professional oscillating knife cutting technology with precise CNC control system to realize die-free, high-speed, burr-free and high-precision customized contour cutting.
Cutting Speed
Adjustable cutting speed adapts to different honeycomb material densities
Positioning Accuracy
Precise repeated positioning ensures uniform cutting dimension
Tool Configuration
Supports quick switch of multiple oscillating cutting tools
Data Input
Compatible with common graphic formats for direct file import
Product Features of Sublistar Honeycomb Laser Cutting Engraving Machine

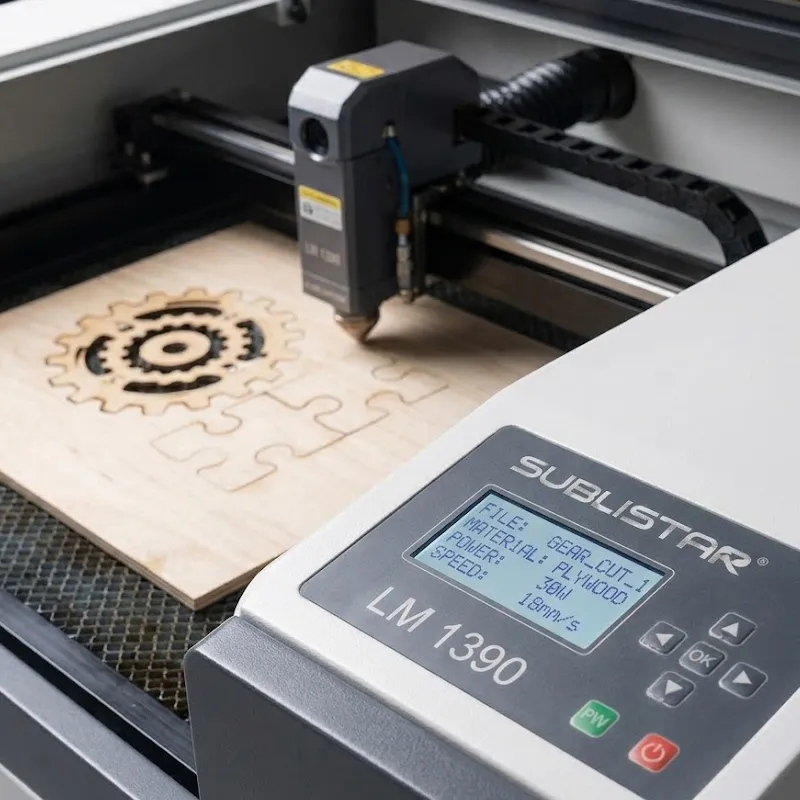

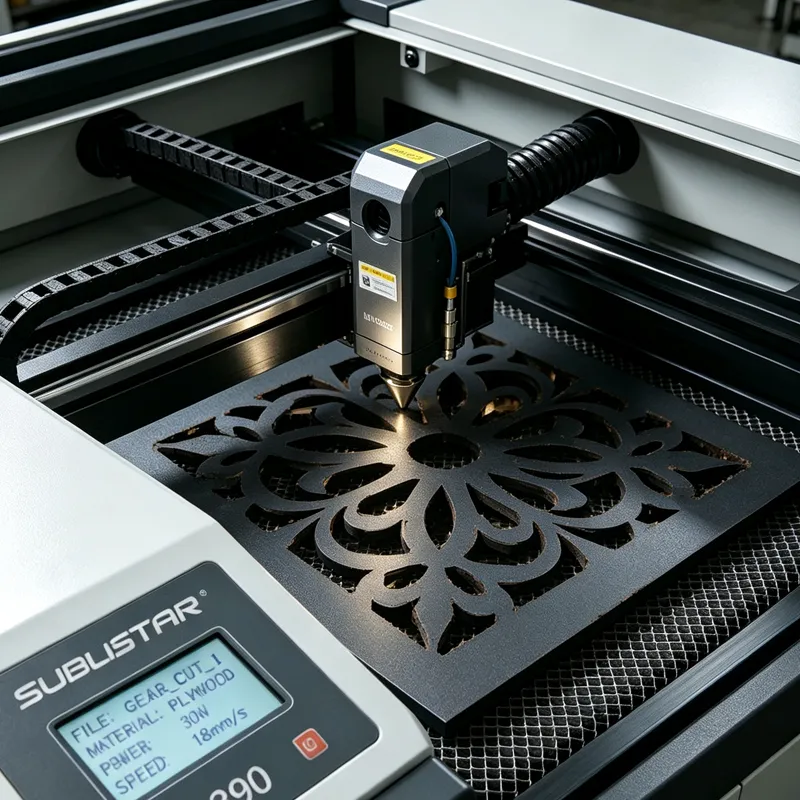

The LC-1390 Honeycomb Laser Machine has high-precision CO₂ laser cutting and engraving, a stable honeycomb table, fast performance, and easy operation for various non-metal materials.

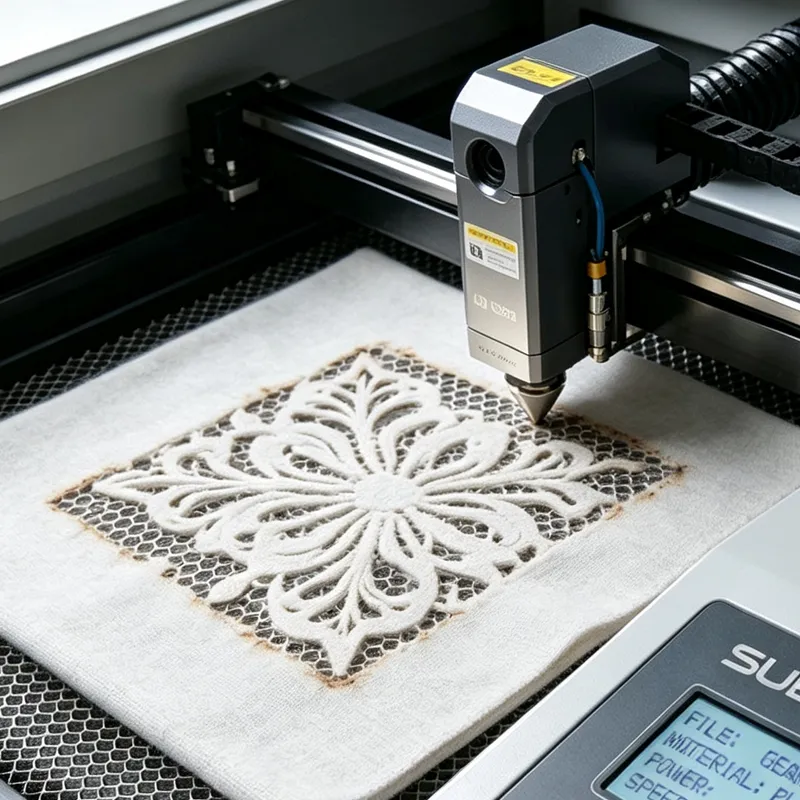

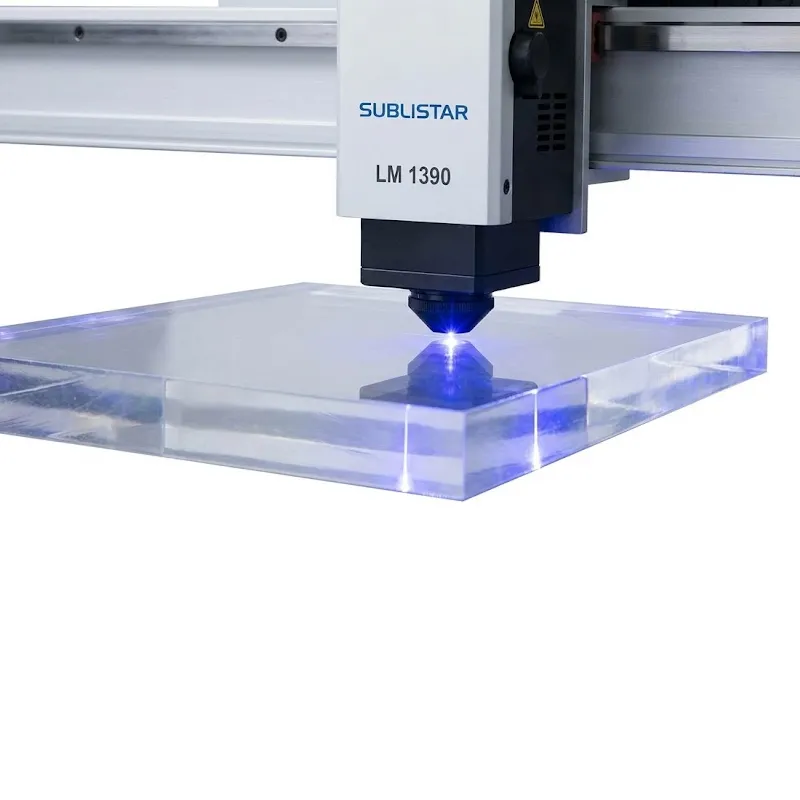

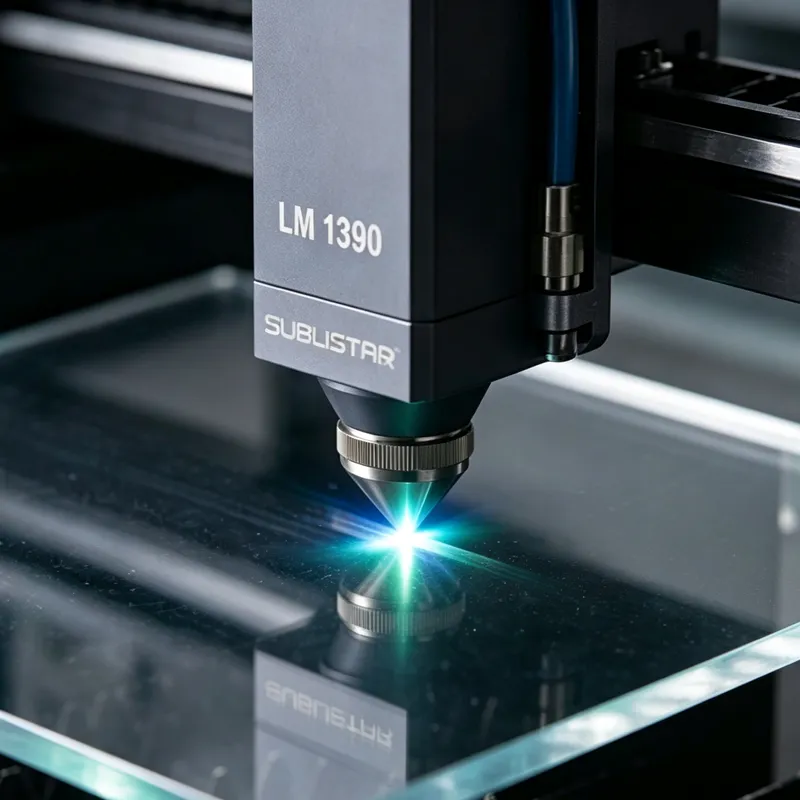

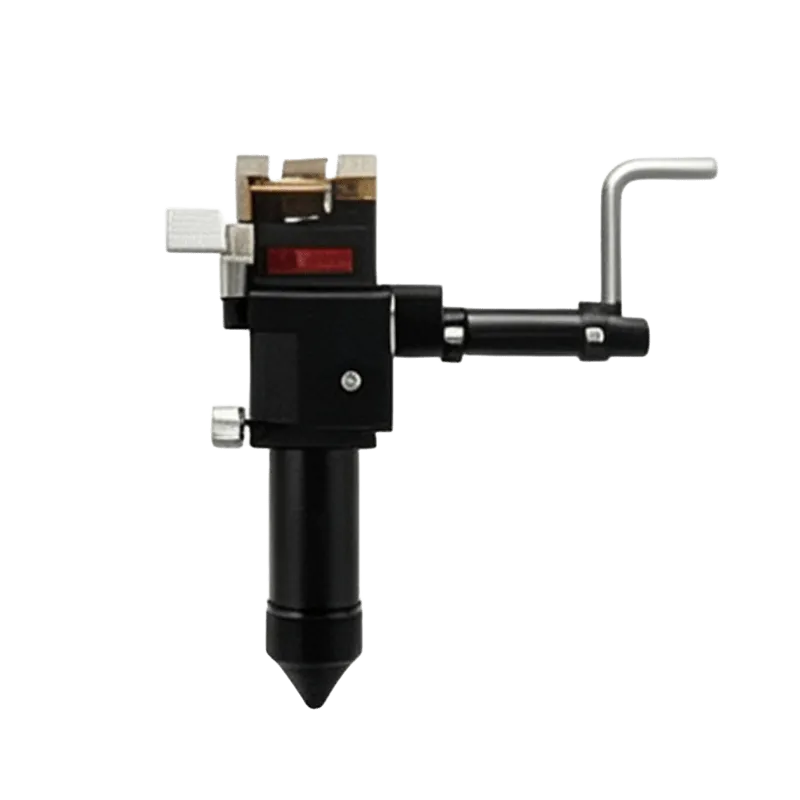

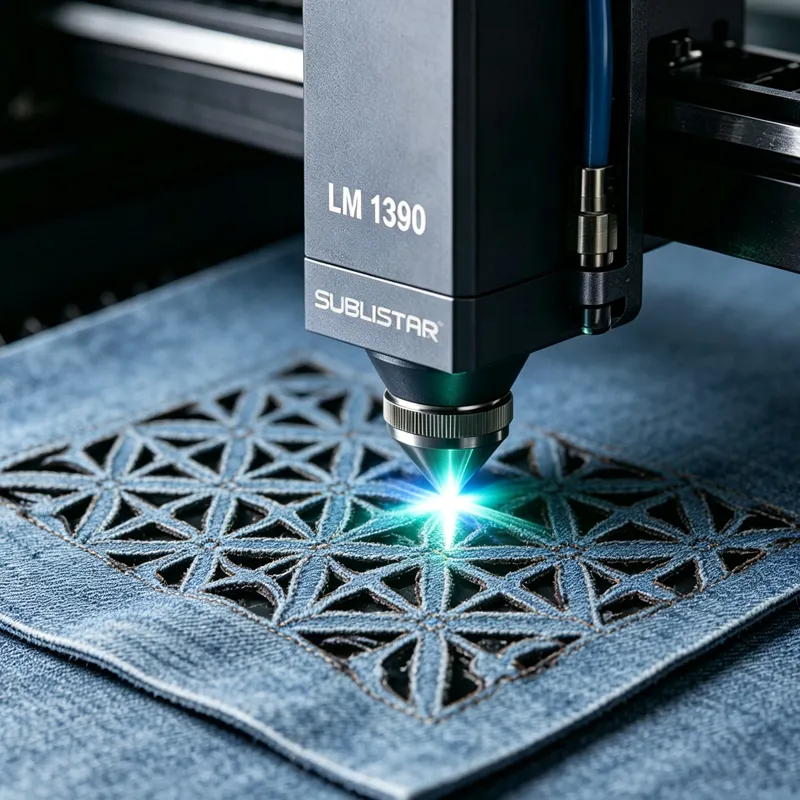

Laser head
Core laser processing component, converges laser beam and outputs auxiliary air to complete cutting & engraving.

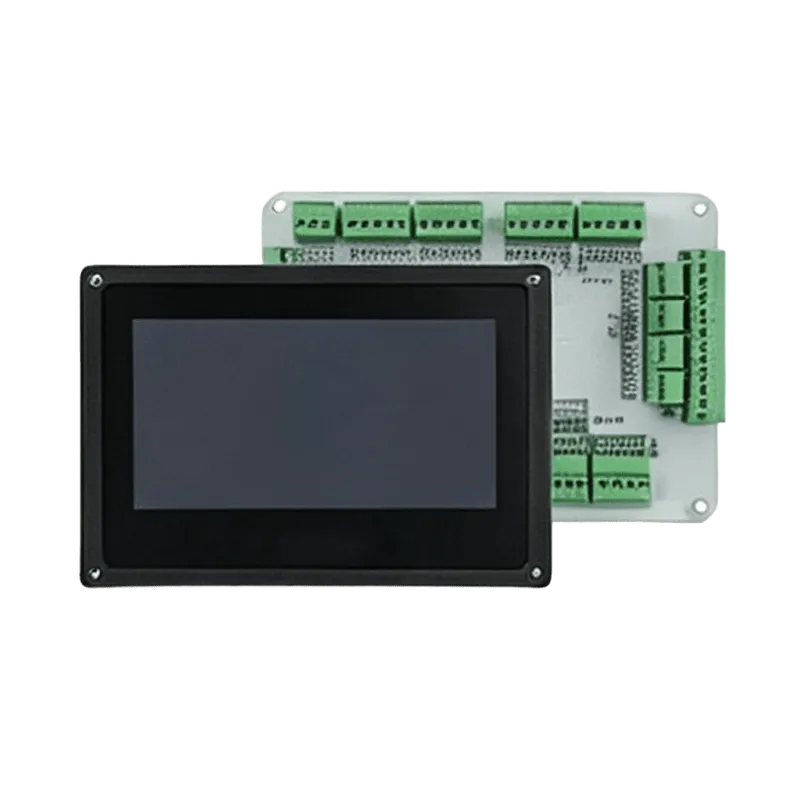

Panoramic Control System
Integrated touch control mainboard, realizes parameter setting, motion control and whole machine operation

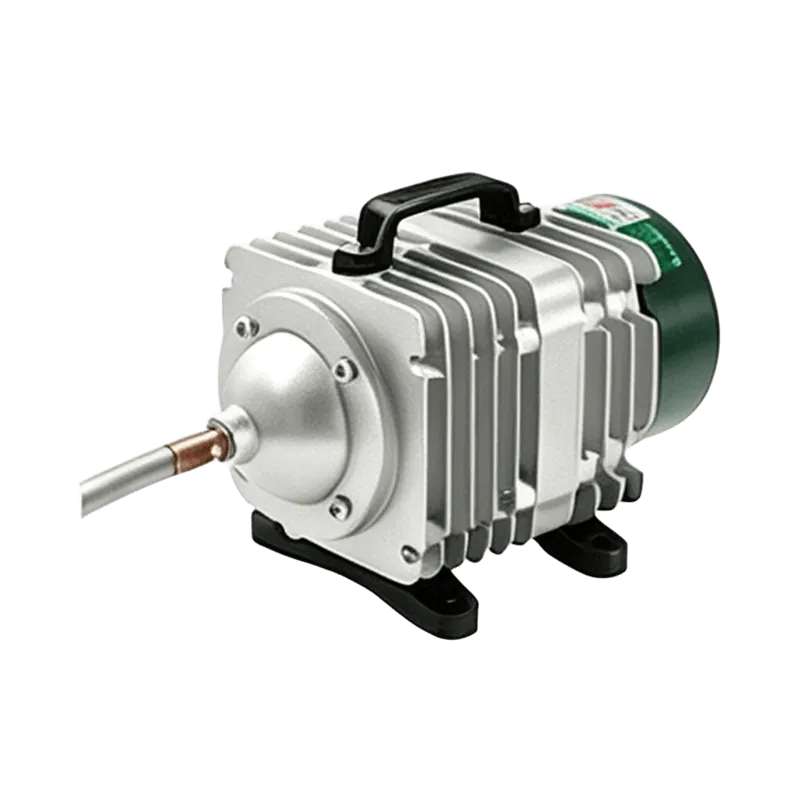

Air Blower
Exhaust smoke and dust generated during laser processing, keep processing environment clean.

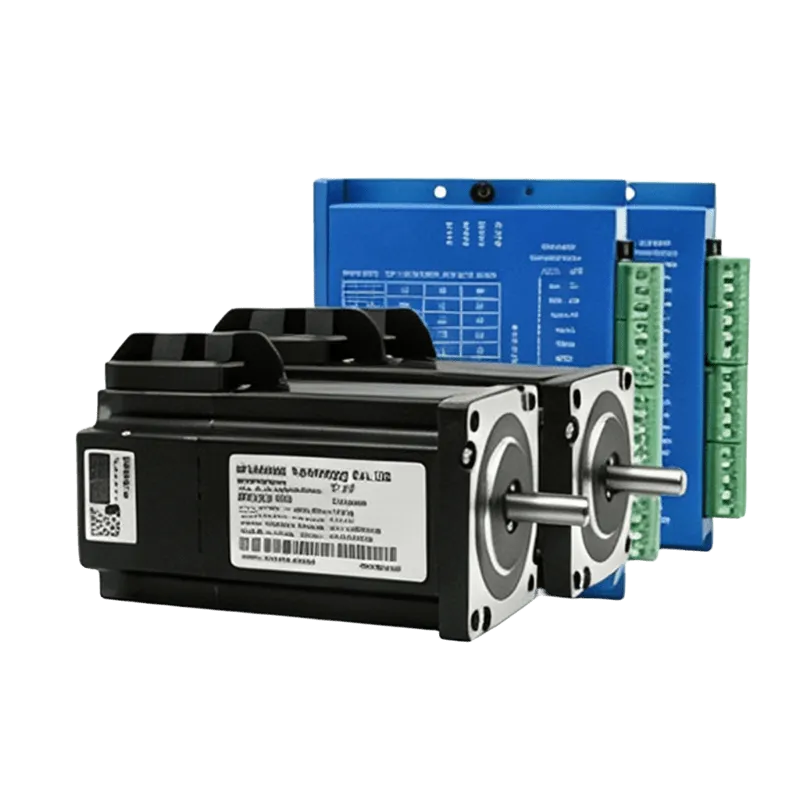

Motor Driver
Drives X/Y/Z servo motors, ensures stable, precise and smooth machine movement.

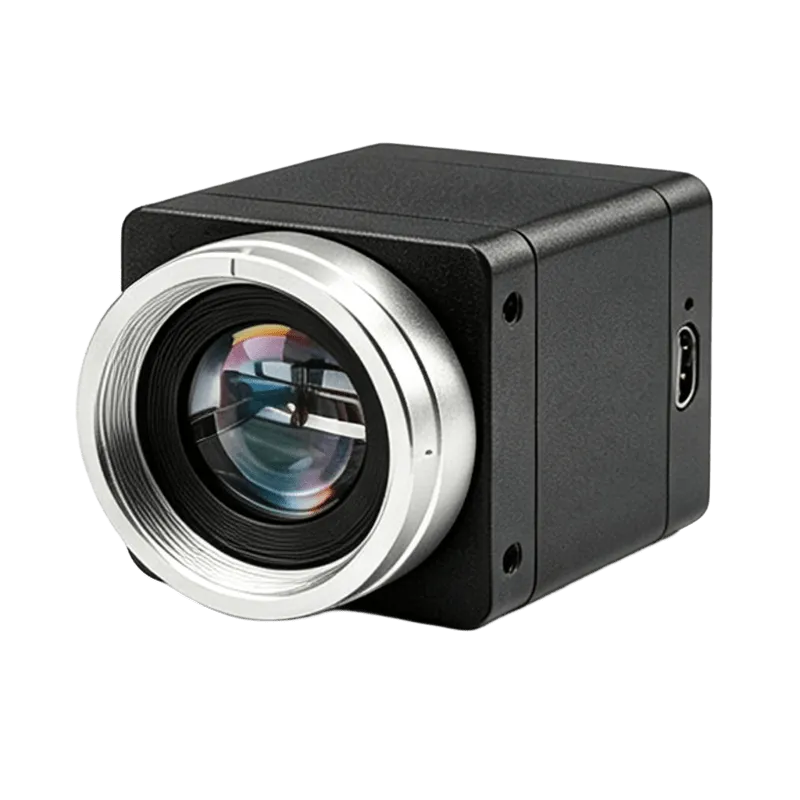

CCD Vision Camera
Visual positioning module, identifies workpiece contour, realizes automatic edge finding & accurate alignment.

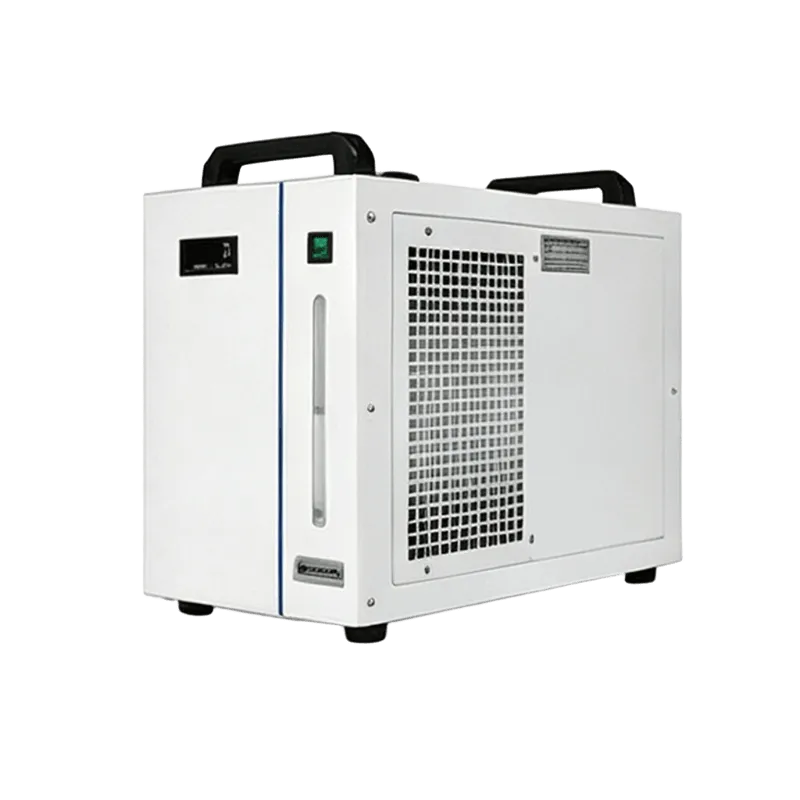

Water Chiller
Constant-temperature water cooling unit, dissipates heat for laser source & optical parts to avoid overheating.
Specifications - Overhead Vision-Guided Laser Cutting Machine
| Honeycomb-Bed CO₂ Laser Cutting & Engraving Machine | |
| Model | LC-1390H |
| Working Area | 1300 × 900 mm |
| Laser Type | Sealed CO₂ Glass Laser Tube |
| Laser Power | 130 W / 150 W Optional |
| Laser Head Configuration | Single Head / Dual Head Optional |
| Working Table | Honeycomb Worktable |
| Optional Worktable | Knife-Blade Worktable |
| Drive System | Hybrid Servo System |
| Maximum Engraving Speed | Up to 60,000 mm/min |
| Maximum Cutting Speed | Up to 10,000 mm/min |
| Repeat Positioning Accuracy | ±0.05 mm |
| Vision System | CCD Vision Camera Optional |
| Cooling Method | Water Cooling |
| Supported File Formats | AI, DXF, PLT, BMP, JPG, PNG, TIFF and CDR* |
| Input Voltage | AC 220 V / 110–120 V, 50/60 Hz |
| Total Rated Power | ≤3.5 kW |
| Machine Dimensions | 1850 × 1250 × 1070 mm |
| Supported Materials | Acrylic, Wood, MDF, Plywood, Paper, Cardboard, Leather, Felt and Other Laser-Compatible Non-Metal Materials |
Applications
This honeycomb cutting machine is widely used for processing various honeycomb panels. Finished parts are applied in protective packaging, aerospace lightweight structures, new energy equipment, automotive interiors, composite engineering and logistics buffer materials.
FAQ
What materials can the honeycomb cutting machine process?
It is suitable for paper honeycomb, aramid honeycomb, aluminum honeycomb and other lightweight honeycomb composite panels.
Does this honeycomb cutting machine need cutting dies?
No. It adopts oscillating knife die-free cutting, supporting arbitrary customized shapes without mold manufacturing.
What industries widely use this honeycomb cutter?
Widely applied in protective packaging, aerospace, new energy, automotive lightweight and composite material processing industries.
How to fix honeycomb materials on the worktable during cutting?
Equipped with vacuum adsorption worktable, which firmly holds lightweight honeycomb panels and prevents shifting.
Can the machine realize small-batch sampling and mass production?
Yes. Flexible production mode meets prototype sample making, small trial batches and continuous mass production.
Will there be burrs after cutting honeycomb panels?
The oscillating knife system delivers smooth, neat and burr-free cutting edges for most honeycomb materials.
What graphic formats does the machine support to import?
Compatible with common formats such as DXF, AI, PLT, allowing direct graphic import and cutting path editing.
Is the machine easy to operate for new operators?
It comes with user-friendly operation software. Operators can master basic operation after simple training.
