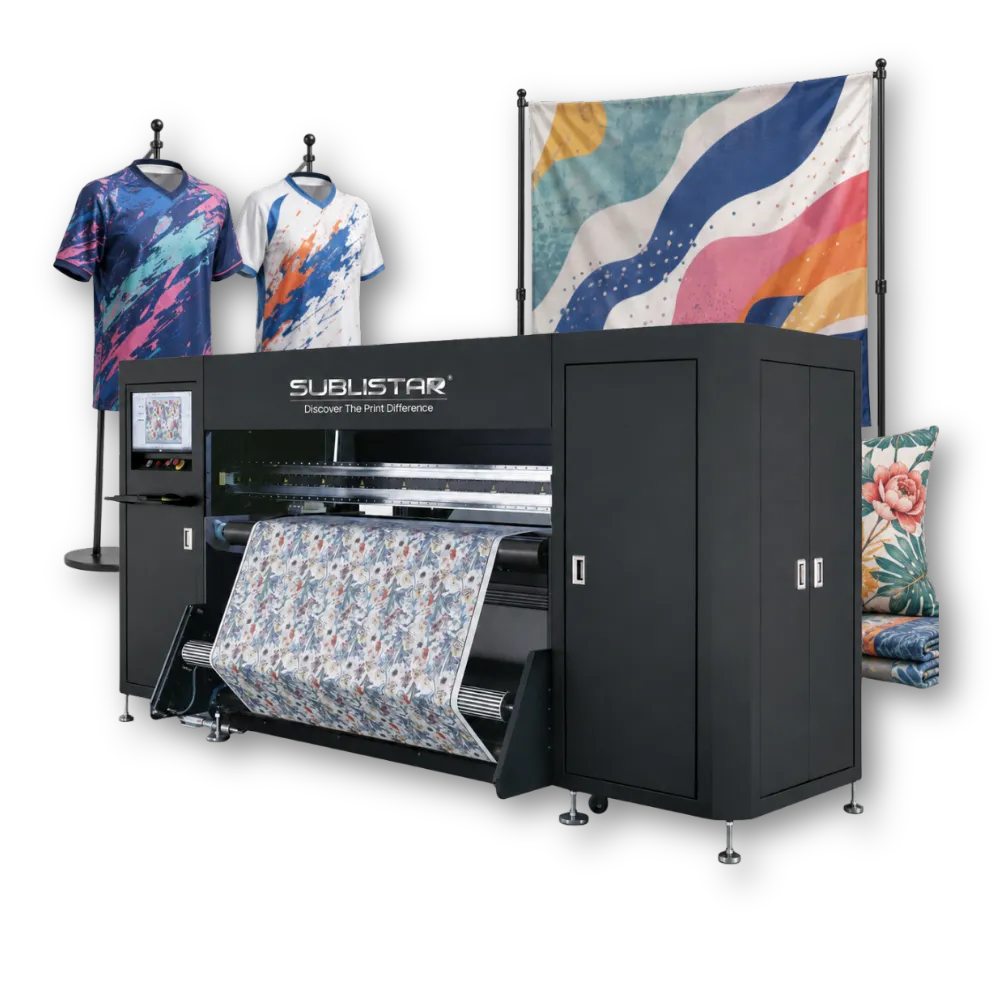

SUB-1908S / 1912S Titan 1.9m Industrial Sublimation Printer with Epson S3200-A1 Printheads
The SUBLI-1908S and SUBLI-1912S Titan are 1.9m industrial sublimation printers equipped with 8 or 12 Epson S3200-A1 printheads. Built for high-volume transfer paper printing, the series combines a rigid industrial frame, precision servo-driven paper feeding, stable negative-pressure ink supply and an intelligent EtherCAT motion control system. Its jumbo-roll feeding and take-up system reduces roll changes, while the adjustable vacuum platform keeps transfer paper flat during high-speed printing. Choose the 8-head model for balanced productivity or the 12-head model for higher production capacity.
Warranty: 24 months (Ink system, printheads and ink capping are not covered)
International Shipping: DHL, FedEx, By Air, By Sea
Product Highlight
Industrial Speed and Precision for High-Volume Sublimation Printing
The SUBLI-1908S and SUBLI-1912S Titan are 1.9m industrial sublimation printers equipped with 8 or 12 Epson S3200-A1 printheads. A rigid steel frame, precision linear motion system and servo-controlled paper feeding ensure stable, accurate output at high speeds. The adjustable vacuum platform, negative-pressure ink supply and EtherCAT control system further improve printing consistency. With jumbo-roll support and one-touch paper loading and unloading, the Titan Series is designed for efficient, continuous transfer paper production.
Scalable 8- or 12-Head Performance
Choose 8 Epson S3200-A1 printheads for balanced productivity or 12 printheads for higher-volume industrial production.
Industrial Precision and Stability
The rigid frame, THK linear guides, precision linear motor and Renishaw encoder ensure smooth scanning, accurate positioning and consistent print quality.
Efficient Jumbo-Roll Production
Supports transfer paper rolls up to 1,000 mm in diameter, with servo-controlled feeding and one-touch loading and unloading for longer, more efficient production runs.
Professional Features
Epson S3200-A1 Printhead: Built for Speed and Precision
The Epson S3200-A1 is an industrial-grade PrecisionCore MicroTFP printhead featuring 3,200 nozzles and an effective printing width of 120.2 mm. Its wide print swath and high-density nozzle design deliver greater productivity with fewer passes, while Variable Sized Droplet Technology produces smooth color gradients, fine details and consistent ink placement. The scalable S-shaped design is ideal for multi-head configurations, enabling higher printing speeds without sacrificing image quality. Its proven durability and precise positioning system also support reliable long-term production and efficient printhead replacement
Heavy-Duty Rigid Frame
The reinforced steel frame minimizes vibration and deformation, ensuring stable and accurate printing during continuous high-speed production.
Micron-Level Scanning Precision
THK linear guides, a precision linear motor and a Renishaw encoder deliver smooth carriage movement and accurate positioning with a resolution of up to 1 μm.
Precise and Stable Paper Feeding
High-precision drive rollers and 23-bit servo motors ensure smooth paper movement, accurate stepping and consistent results on long print runs.

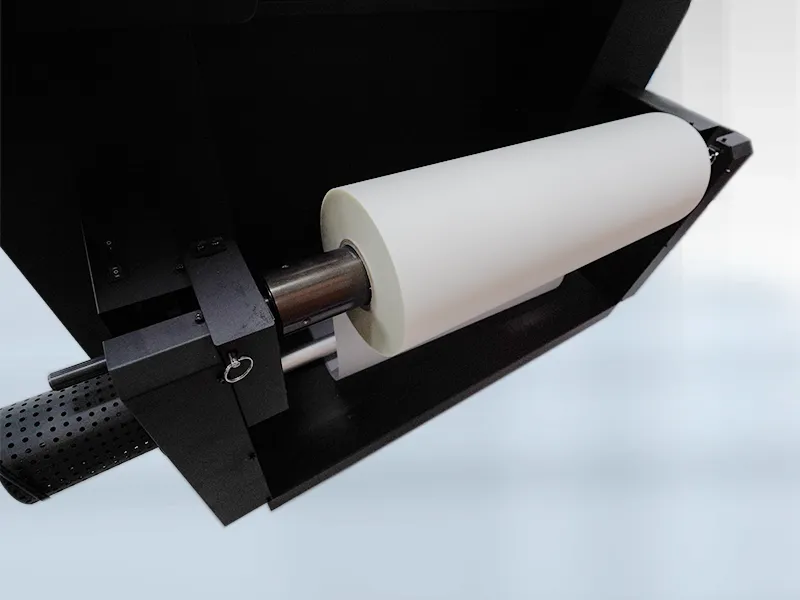

One-Touch Paper Loading and Unloading
The patented roll-handling system simplifies paper loading and unloading. It supports paper rolls up to 1,000 mm in diameter for longer uninterrupted production.
Adjustable Vacuum Printing Platform
The integrated vacuum platform keeps transfer paper flat and stable, helping prevent paper lifting, wrinkling and printhead strikes.
Stable Negative-Pressure Ink Supply
The advanced negative-pressure ink system uses high-quality SMC components to provide smooth ink flow and stable printing during high-speed operation.
Easy Printhead Cleaning and Protection
Positive-pressure cleaning, safe wiping and reliable capping help maintain nozzle condition, simplify daily maintenance and extend printhead life.
Intelligent EtherCAT Motion Control
The EtherCAT control system precisely coordinates carriage movement, paper feeding, roll handling and drying for efficient and reliable production.
Why Choose the Titan Series Sublimation Printer?
The Titan Series combines high-speed output, precise motion control and industrial-grade stability for demanding textile production. With 8- or 12-head configurations, a reinforced rigid frame, servo-controlled paper feeding and jumbo-roll support, it delivers consistent print quality while reducing roll changes and production downtime.
Higher Output
8/12-Head Configuration
Stable Accuracy
Precision Motion Control
Longer Production Runs
1000 mm Jumbo-Roll Support
Industrial Reliability
Reinforced Rigid Frame
Specifications
| Model | SUBLI-1908S Titan | SUBLI-1912S Titan | ||
| Printer Type | Industrial High-Speed Sublimation Printer | |||
| Maximum Printing Width | 1900 mm | |||
| Printhead | Printhead Model | Epson S3200-A1 | ||
| Number of Printheads | 8 | 12 | ||
| Printhead Arrangement | 2 × 4 | 2 × 6 | ||
| Ink Configuration | Color Configuration | 4 Colors | 6 Colors | |
| Standard Ink Configuration | CMYK | CMYK+2 spots | ||
| Ink Type | Sublimation Ink | |||
| Printing Model | High Definition Mode | High Speed Mode | High Definition Mode | High Speed Mode |
| Production | 1pass: 520 m²/h | 1pass: 805 m²/h | 1pass: 506 m²/h | 1pass: 796 m²/h |
| 2pass: 280 m²/h | 2pass: 454 m²/h | 2pass: 271 m²/h | 2pass: 440 m²/h | |
| 4pass: 140 m²/h | 4pass: 225 m²/h | 4pass: 136 m²/h | 4pass: 220 m²/h | |
| Printing Media | Sublimation Transfer Paper | |||
| Printing Platform Height | 1000 ± 50 mm | |||
| Maximum Paper Roll Diameter | 1000 mm | |||
| Feeding & Take-up System | Industrial Jumbo Roll Feeding and Take-up System | |||
| Compressed Air Consumption | 0.03 m³/min | |||
| Required Air Pressure | ≥0.7 MPa | |||
| Power Supply | 380 VAC, 3 Phase | |||
| Rated Power | 18 kW | |||
| Machine Dimensions (L × W × H) | 2550 × 3730 × 1800 mm | |||
| Machine Weight | 220kg | |||
| Packaging size (L × W × H) | Printer Main Unit | Printer Main Unit: 3910 × 1620 × 2290 mm | ||
| Take-up Unit | Take-up Unit: 1420 × 2300 × 1350 mm | |||
Application
The printer is suitable for producing transfer paper for:
- Sportswear and team uniforms
- Fashion and activewear
- Flags, banners and soft signage
- Home textiles and decorative fabrics
- Swimwear and cycling apparel
- Promotional textile products
FAQ
What is the Titan Series sublimation printer?
The Titan Series is a 1.9m industrial dye-sublimation printer designed for high-volume transfer paper production. It is available with 8 or 12 Epson S3200-A1 printheads and features a rigid frame, precision paper feeding, jumbo-roll handling and EtherCAT motion control.
What is the difference between the SUBLI-1908S and SUBLI-1912S?
The SUBLI-1908S uses 8 Epson S3200-A1 printheads and offers a balance between investment cost and production capacity. The SUBLI-1912S uses 12 printheads and is designed for customers requiring higher output. Actual productivity depends on the selected print mode, image coverage, paper and RIP settings.
What is the maximum printing width?
Both models provide a maximum printing width of 1900 mm, making them suitable for sportswear, fashion fabrics, home textiles, soft signage and other wide-format textile applications.
What are the advantages of Epson S3200-A1 printheads?
The Epson S3200-A1 is an industrial PrecisionCore MicroTFP printhead with 3,200 nozzles and an effective print width of 120.2 mm. Its wide print swath, high nozzle density and variable-sized droplet technology support fast printing, smooth color gradients and precise ink placement.
Does the printer print directly onto fabric?
No. The Titan Series prints sublimation ink onto sublimation transfer paper. The printed design is then transferred onto polyester fabric or polyester-coated materials using a calendar heat press.
What ink and color configurations are available?
The 8-head model uses a standard 4-color CMYK sublimation ink configuration, providing reliable color reproduction for general textile production. The 12-head model supports a 6-color configuration, combining CMYK with two additional spot or specialty colors. The extra colors can be customized according to the required color gamut, application and target fabric.
What software is used with the printer?
Hosonsoft is used to control the printer and manage machine operations. For RIP and color management, NeoStampa is recommended for optimized compatibility with the Titan Series, delivering accurate color reproduction, smooth workflow and high-quality output at high printing speeds.
